Details

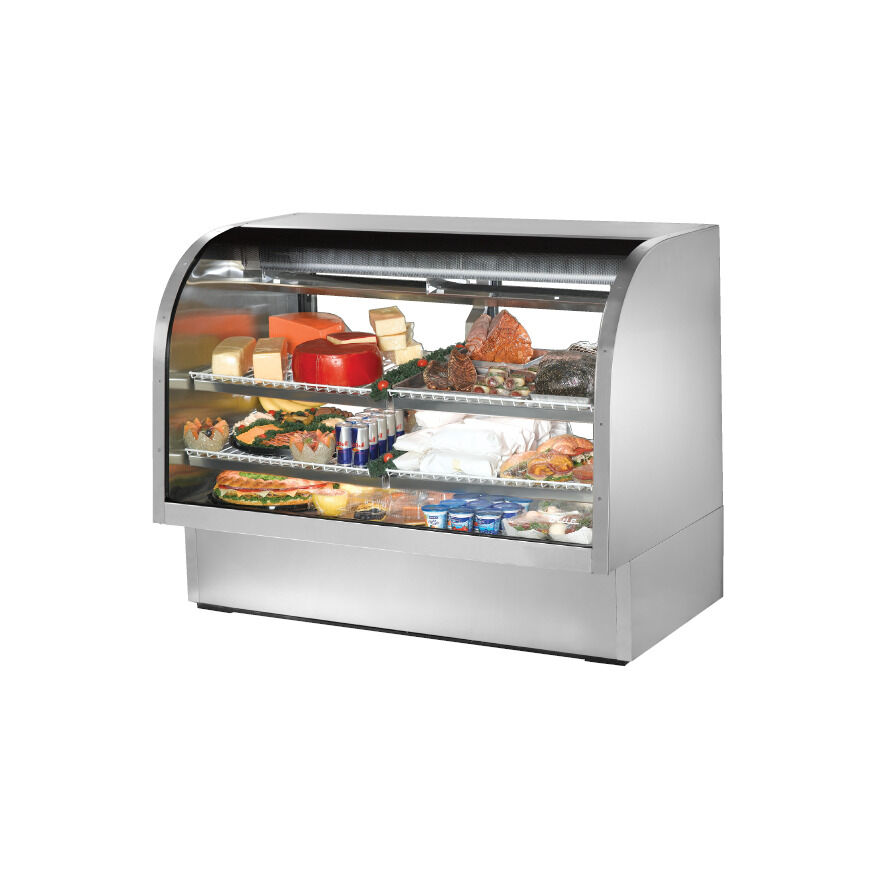

True TCGG-60-S Refrigerated Deli Display Case with Curved Glass, Stainless Steel Exterior combines efficient, high-volume merchandising with exceptional refrigeration, all highlighted by its elegant curved glass front for a sophisticated presentation of deli products. The gravity coil refrigeration system ensures the freshest display of meats, cheeses, and other deli items, making it a standout choice for both style and performance.
Refrigeration System:
- Factory-engineered, self-contained capillary tube system with R290 hydrocarbon refrigerant (zero ozone depletion potential (ODP), three global warming potential (GWP)).
- Extra-large evaporator coil with higher horsepower compressor and large condenser maintains 38°F to 40°F (3.3°C to 4.4°C).
- High humidity gravity coil refrigeration system, ideal for deli meats, cheeses, and salads.
- The condensing unit is located behind a panel at the back; the entire system slides out for easy cleaning and maintenance.
- Automatic defrost system; time-initiated and time-terminated.
Cabinet Construction:
- Exterior: All stainless steel front, sides, back, and top.
- Interior: All stainless steel sides and floor with coved corners.
- Insulation: Foamed-in-place high-density polyurethane insulation with zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Frame: Welded, heavy-duty steel frame rail, black powder-coated for corrosion protection, with leg levellers.
Curved Front Display Glass:
- Insulated double-pane glass for maximum insulation, efficiency, and energy savings; both panes are tempered for safety.
Rear Doors:
- “Low-E” double-pane thermal glass inserts with mitered plastic channel frames.
- Each door has a 12" (305 mm) moulded plastic handle.
- Self-closing doors with a counterbalanced weight system for smooth, even closure. Sliding doors ride on stainless steel V-channel with stainless steel bearings and fit within the plastic channel frame.
Shelving:
- Four (4) adjustable, lighted, white heavy-duty PVC-coated wire shelves, 22 1/2" L x 27 7/8" D (572 mm x 709 mm), cantilevered with adjustable angles for optimal presentation.
Lighting:
- Equipped with five (5) LED light sources: four (4) shelf-mounted and one (1) cabinet-mounted.
Model Features:
- Epoxy-coated evaporator to prevent corrosion.
- Four (4) amp exterior scale receptacles.
- NSF/ANSI Standard 7 compliant for open food products.
Electrical:
- Pre-wired at the factory for final connection to a 115/60/1 phase, 20 amp dedicated outlet. Cord and plug set included.
