Details
Design:

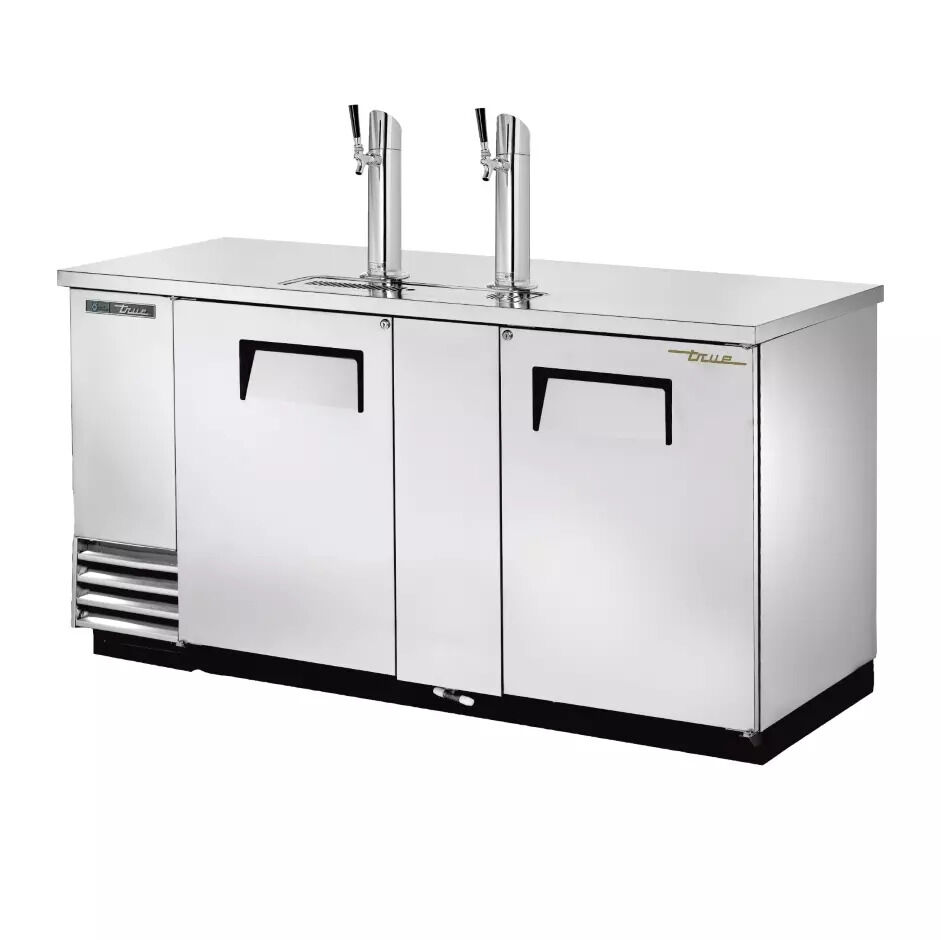

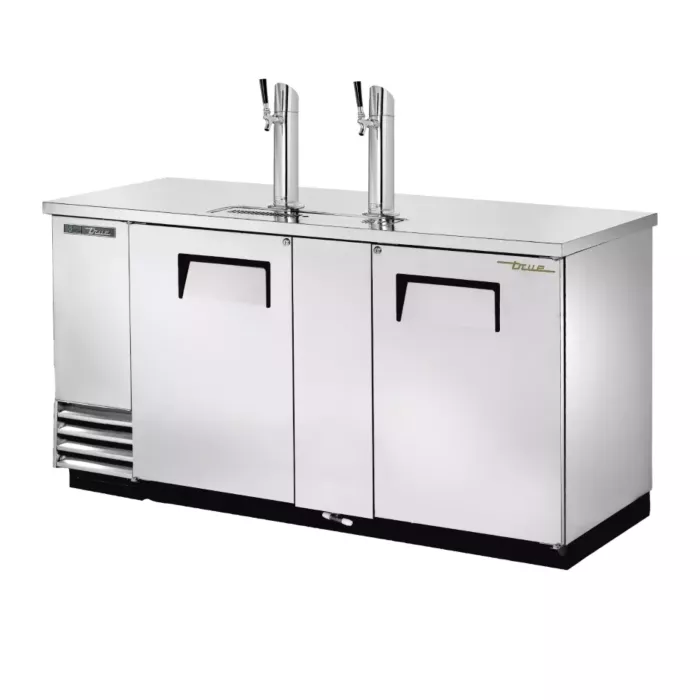

True TDD-3-S Draft Beer System 2 Taps & 3 Keg Capacity, Stainless Steel is designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble-free service.
Refrigeration System:
- Factory-engineered, self-contained, capillary tube system using environmentally friendly R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) & three (3) global warming potential (GWP).
- High capacity, factory-balanced refrigeration system maintaining cabinet temperatures of 33°F to 38°F (.5°C to 3.3°C).
- State-of-the-art, electronically commutated evaporator and condenser fan motors (ECM). ECM motors operate at higher peak efficiencies, moving a consistent air volume, producing less heat, reducing energy consumption, and providing greater motor reliability.
- Condensing unit accessed from behind front grill, slides out for easy cleaning and maintenance.
Cabinet construction:
- Exterior: Stainless steel doors, front, sides, and aluminum back. Stainless steel countertop.
- Interior: Stainless steel floor with 1/2" reinforced lip and galvanized steel walls.
- Door threshold protector to prevent cabinet damage from routine loading.
- Insulation: High-density polyurethane, foamed-in-place, zero ozone depletion potential (ODP), zero global warming potential (GWP).
- Heavy-duty steel frame rail, black powder-coated for corrosion protection.
- Two 3" diameter stainless steel insulated beer columns, cold air directed to reduce foaming and maximize profits.
Doors:
- Stainless steel exterior, galvanized steel liner.
- 12" recessed handle, foamed-in-place with sheet metal interlock.
- Positive seal doors and magnetic gaskets are removable without tools.
- Standard door locks.
Lighting:
- LED interior lighting.
Model features:
- Epoxy-coated evaporator to prevent corrosion.
- 1/2" barbed T drain fitting on front.
- Accommodates all types of beer kegs.
- Standard two-way tapper manifold.
- NSF/ANSI Standard 7 is listed.
Electrical:
- Pre-wired for 115/60/1 phase, 15 amp outlet. Cord and plug included.
