Details
Design:

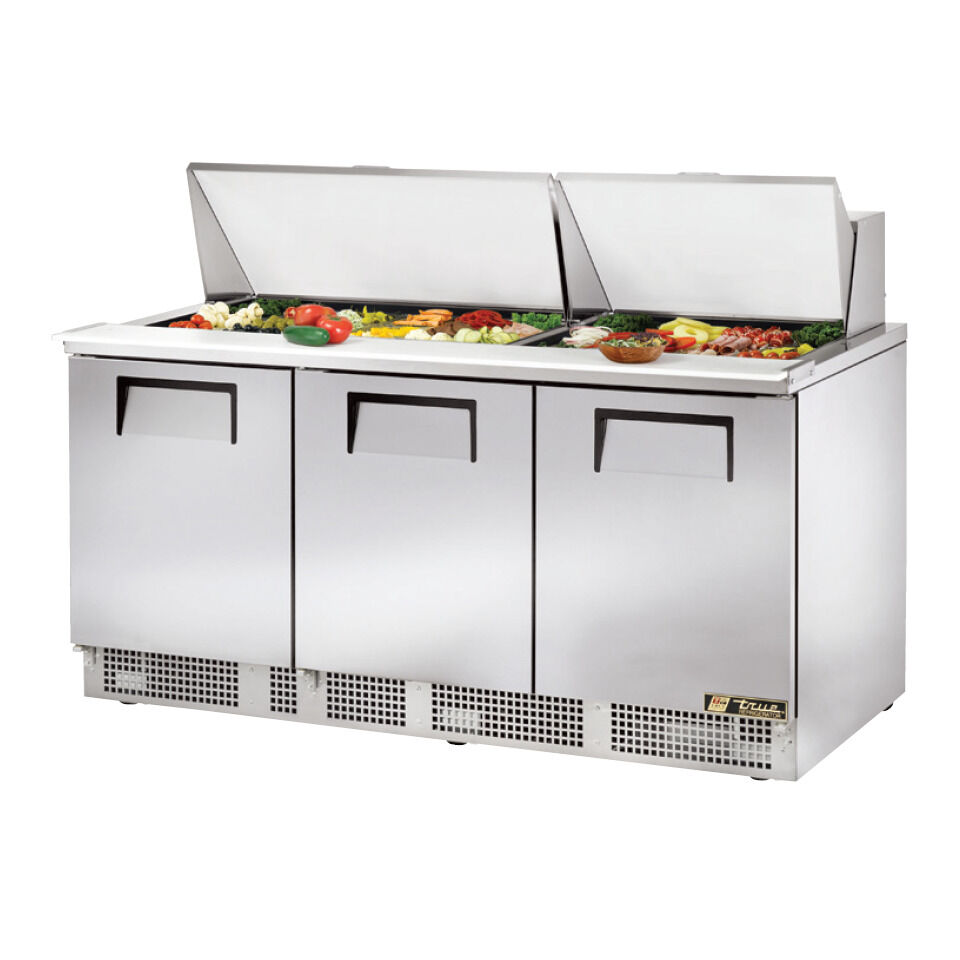

True TFP-72-30M Sandwich / Salad 30 Pan Refrigerated Prep Table Megatop, 3 Doors uses the highest quality materials and oversized refrigeration systems providing the user with colder product temperatures, lower utility costs, exceptional food safety and the best value in today's food service marketplace.
Refrigeration System:
- Factory-engineered, self-contained capillary tube system using CFC-free 134A refrigerant.
- Energy-saving, factory-balanced refrigeration system with guided airflow for uniform temperature in food pans and cabinet interiors.
- The exclusive forced-air design maintains 33°F to 41°F (.5°C to 5°C) product temperature in food pans and cabinet interior. Complies with ANSI/NSF-7.
- High-efficiency evaporator fan motor and larger fan blades for more efficient, low-velocity, high-volume airflow.
- Easy access to all condensing unit components from the back of the cabinet.
Cabinet Construction:
- Exterior: Stainless steel front, top, and ends; matching aluminum-finished back.
- Interior: NSF-approved, clear-coated aluminum liner; stainless steel floor with coved corners.
- Insulation: Entire cabinet structure and drawer facings foamed-in-place using Ecomate, a high-density polyurethane with zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Castors: 2½" (64 mm) diameter with locks on the front set.
- Solid State Electronic Control, accessible at the back of the unit.
Doors:
- Stainless steel exterior with white aluminum liner to match cabinet interior.
- Doors fitted with 12" (305 mm) long recessed handle, foamed-in-place with a sheet metal interlock for permanent attachment.
- Magnetic door gaskets, one-piece construction, removable without tools for ease of cleaning.
Shelving:
- Six (6) adjustable, heavy-duty PVC-coated wire shelves. Left and right section shelves: 21½"L x 20"D (547 mm x 508 mm). Center shelves: 23"L x 20"D (585 mm x 508 mm). Four (4) chrome-plated shelf clips are included per shelf.
- Shelf support pilasters made of the same material as the cabinet interior; shelves adjustable on ½" (13 mm) increments.
Model Features:
- Epoxy-coated evaporator to prevent corrosion.
- 8" (204 mm) deep, full-length removable cutting board; sanitary, high-density, NSF-approved white polyethylene.
- Stainless steel patented foam-insulated lid and hood; keep pan temperatures colder, lock in freshness, and minimize condensation. Removable for easy cleaning.
- Standard with 30 (1/6 size) clear polycarbonate NSF-approved food pans (6 7/8"L x 6¼"W x 4"D (175 mm x 159 mm x 102 mm)) in the countertop prep area.
- The countertop pan opening accommodates varying pan configurations with available pan divider bars. Varying size pans supplied by others.
- NSF-7 compliant for open food products.
Electrical:
- Factory pre-wired; ready for connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
