Details
Overview

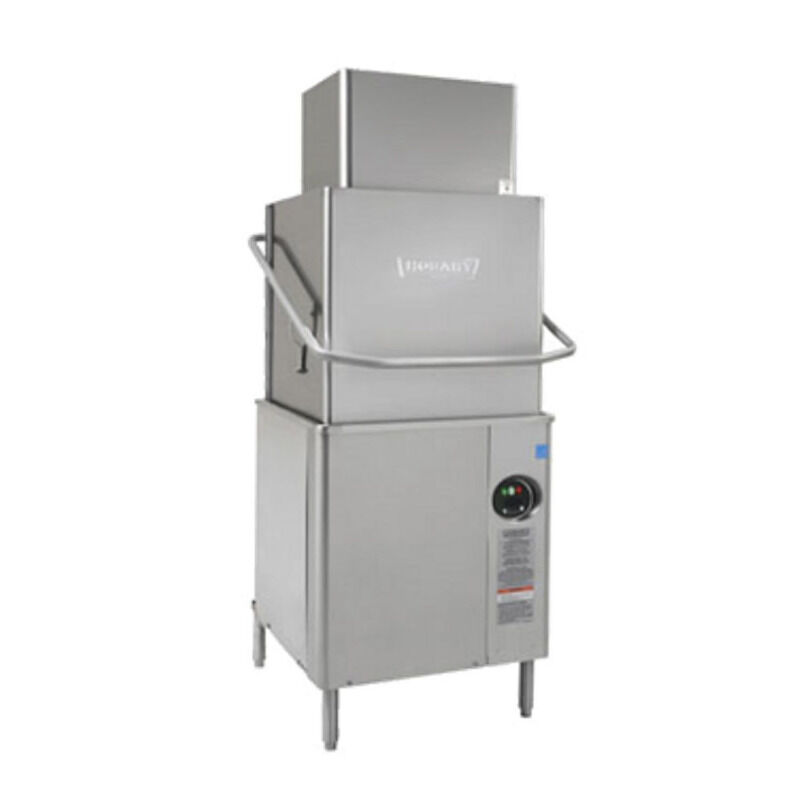

The Hobart AM16VL‑ADV‑2 Advansys is a high-temperature, door-style dishwasher offering ventless, energy-recovery operation in a compact Advansys footprint. With a built-in Sense‑a‑Temp™ booster heater and full ventless heat reclaim, it delivers up to 40 racks/hour of NSF-certified sanitizing wash using just 0.67 U.S. gal (~2.5 L) per rack. Designed for demanding dishrooms without external hooding.
Specification
-
Model: AM16VL‑ADV‑2 — high-temp ventless door washer; Sense‑a‑Temp™ 70 °F booster heater, 208–240 V, 3‑phase (field-convertible to single-phase).
-
Throughput: Up to 36–40 racks/hour (timed cycles: 1, 2, 4, or 6 minutes).
-
Water use: ~0.67 gal (~2.5 L) per rack pumped rinse.
-
Features: Ventless design with internal condensing system, drain water energy recovery (DWER), and Automatic Soil Removal (ASR).
-
Construction: Stainless‑steel tank, 5-sided insulated hood, X‑shaped wash and interchangeable rinse arms, self-cleaning scrap screen. 27″ door opening accommodates sheet pans up to 18″×26″.
-
Controls: Smart touchscreen with Wi‑Fi connectivity via SmartConnect app, factory diagnostics, temperature and chemical lock‑outs.
-
Installation: Straight-through or corner setup; pumped drain; door‑start auto‑fill; factory-installed drain water tempering kit.
-
Warranty: 1‑year parts and labor; includes factory startup in many regions.
Features
-
Ventless Energy Recovery & ASR: Captures heat from drain water and removes food solids downstream, reducing labor and wash-water changes by up to 50%.
-
Sense‑a‑Temp™ Booster: Guarantees a consistent sanitizing rinse rise of 70 °F, delivering final rinse at ~180 °F without chemicals.
-
High Throughput: Choose from 1, 2, 4, or 6‑minute cycles depending on soil level and wash load, with up to 40 racks per hour.
-
Smart Interface: Touchscreen display tracks usage, temperature logs, diagnostics, error alerts, and integrates via Wi‑Fi with Hobart’s SmartConnect app.
-
Ease of Maintenance: AutoClean and AutoDelime™ features reduce manual cleaning time and ensure peak performance with minimal downtime.
-
Flexible Installation: Compact footprint, corner or straight configuration, drilled for single-point electrical connection (field convertible to dual).
Manufacturer Information
Hobart is widely recognized for delivering commercial dishwashers with lasting reliability and low operational costs. The AM16VL‑ADV‑2 combines advanced features like SmartConnect connectivity, ASR, DWER, and ventless energy recovery to lower labor and utility expenses. Backed by Hobart’s service network and industry-leading warranty coverage.
FAQ: (H4)
What sanitizing rinse temperature does it achieve?
Sense‑a‑Temp boosts hot water by ~70 °F to deliver final rinse temperatures of ~180 °F (≈ 82 °C) for NSF-approved sanitation without chemical additives.
How many racks per hour can it process?
Available in up to 40 racks/hour using 1-minute cycles, or ~36 racks/hour for other timings.
How much water is used per rack?
~0.67 gal (≈ 2.5 L) per rack thanks to pumped final rinse and efficient cycle design.
Does it require a vent hood?
No—ventless design with internal condensing and energy recovery eliminates the need for expensive hood installation.
Does it include diagnostic or maintenance alerts?
Yes—SmartConnect-enabled touchscreen reports service alerts, delime notifications, chemical alerts, and system diagnostics to prevent downtime.
