Details
Overview

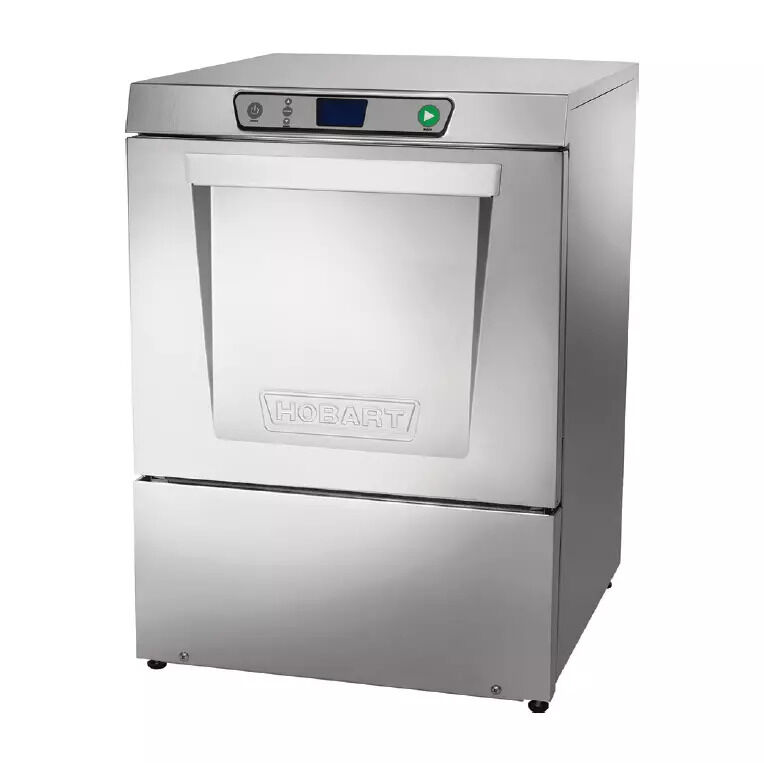

Built for commercial environments like cafés, restaurants, and bars, the Hobart LXEC‑3 offers reliable low-temperature chemical sanitizing without needing high-temperature rinse cycles. Capable of washing up to 34 racks/hour with just 105-second cycles, it conserves water (only 0.74 gal per rack) while ensuring NSF-compliant sanitization via automatic chemical injection.
Specifications
-
Model: LXEC‑3 (LXeC Base Series)
-
Sanitizing Type: Low‑temperature chemical (auto chemical injection)
-
Cycle Time: 105 seconds (≈1 min 45 s)
-
Capacity: Up to 34 racks/hour (light soil)
-
Water Usage: 0.74 gal (2.8 L) per rack (~25 gal/hr max)
-
Tank Capacity: ~2.9 gal (11 L)
- Opening: 17″ door height allows both glassware and prep pans
-
Dimensions (W×D×H): approx. 23.94″ × 25.56″ × 32.5″ (~60.8 × 65 × 82.5 cm)
-
Weight: ~150 lbs (68 kg)Electrical: 120 V / 1 Phase / 60 Hz / ~13.4 A / Electric tank heat ~1.8 kW
-
Materials: Stainless steel tank, door and top panels; corrosion-resistant pump
-
Certifications: NSF, cULus (UL Canada & USA), ENERGY STAR®
-
Warranty: 1 year parts & labor (typical coverage for Hobart LXe series)
Features
-
Auto‑chemical dosing: built-in detergent, rinse aid & sanitizer pumps with auto-prime ensure correct chemical levels each cycle.
-
Low-chemical & delime alerts: LED indicators notify operators of low sanitizer/detergent or need for deliming.
-
Service diagnostics: integrated diagnostics help technicians troubleshoot issues quickly.
-
Revolving upper & lower anti-clog wash and rinse arms: provide consistent cleaning.
-
Pumped automatic drain: removes up to 4 gal/min to prevent standing water.
-
Deep‑drawn seamless stainless tank and removable scrap screen: simplify cleaning and prolong durability.
-
Compact footprint with large opening: fits under standard counters while accommodating taller ware.
Manufacturer Information
Brand: Hobart (LXe Series, made in USA)
Recognized for professional equipment reliability and backed by industry-leading service support. ENERGY STAR® and NSF certified, with comprehensive service programs available. Includes 1-year parts & labor warranty, extended options purchasable.
FAQ:
Can the LXEC‑3 handle heavy soils or prep ware?
Yes—its 17" door opening and NSF pot‑and‑pan rated cycles make it suitable for heavier ware when needed.
Do I need hot water supply?
Yes—incoming water should be at least 120 °F, though 140 °F is recommended for best performance.
Is a drain pump included?
Yes—the unit has an automatic pump drain capable of 4 gal/min.
How often to delime?
Delime notifications prompt maintenance; frequency depends on water hardness and cycle usage.
What rack types are included?
Standard delivery includes one peg rack and one combinati
