Details
Overview

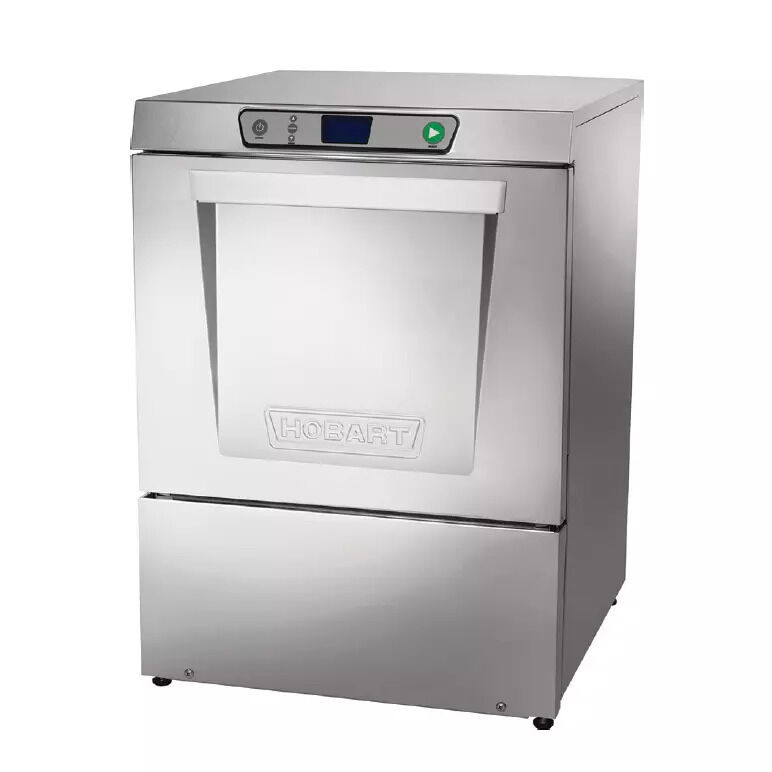

The Hobart LXeH‑2 undercounter dishwasher delivers hot‑water sanitizing through a 70 °F Sense‑A‑Temp booster, ensuring a final rinse temperature of 180 °F for NSF-compliant sanitation. Capable of washing up to 32 racks per hour, it operates efficiently—using only 0.74 gallons per rack. Built with robust stainless steel construction and modern diagnostics, it’s ideal for busy cafés, bars, and restaurant kitchens.
Specification
-
Capacity: Up to 32 racks/hour (light cycle; normal & heavy cycles available)
-
Water Usage: 0.74 gallons (≈ 2.8 L) per rack
-
Cycle Time: Approx. 109 seconds per rack
-
Temperatures: Wash ~150 °F; rinse at ~180 °F via 70 °F booster rise
-
Construction: Deep-drawn tank and 17″ tall door opening, full stainless steel frame
-
Filtration & Controls: Dual-filtration system, removable scrap screen, low chemical alerts, auto prime pumps, delime reminders, advanced diagnostics with LED display
-
Plumbing: Automatic fill and pumped drain included ,
-
Electrical: 208‑240 V, single-phase, ~30.5 A (hardwired) with 4.9 kW booster heater
-
Certifications: NSF‑rated, cULus/ETL listed, ENERGY STAR qualified
-
Optional Accessories: Two‑level rack kit increases capacity to 48 racks/hour; drain water tempering kit; stainless stand; legs; splash panels
Features
-
Built-in Sense‑A‑Temp booster heater elevates rinse water by 70 °F to maintain 180 °F sanitization
-
Efficient water consumption at just 0.74 gal/rack
-
Dual‑level rack system increases throughput up to 48 racks/hour with optional kit
-
Intuitive top‑mounted LED touchscreen with service diagnostics and delime cycle alerts
-
Snap‑in anti‑clogging wash & rinse arms and deluxe stainless-steel strainer for ease of service
-
Auto-clean shutdown rinse cycle and auto prime chemical pumps maintain hygiene & uptime
-
Energy recovery and steam elimination features enhance kitchen working conditions
Manufacturer Information
Hobart is a respected US‑based leader in commercial warewashing. The LXeH‑2 model is manufactured in the USA and backed by a 1‑year parts & labour warranty. It is widely supported across North America via Hobart’s service network.
FAQ
How many racks per hour?
Up to 32 racks/hour in light cycle; normal and heavy cycles deliver around 24 / 13 racks/hr respectively. A two‑level rack kit can boost capacity to 48 racks/hour. .
How much water does it use?
Approximately 0.74 US gallons per rack, or about 2.8 litres.
Does it sanitize with hot water?
Yes—the Sense‑A‑Temp booster heater raises rinse water by 70 °F to reach 180 °F, meeting NSF sanitizing standards.
Are there automatic maintenance features?
Yes—includes delime notifications, low chemical alerts, service diagnostics, auto-clean shutdown rinse, and auto-prime chemical pumps.
What electrical supply is needed?
Requires 208‑240 V single-phase, ~30.5 amps, hardwired connection. Booster heater rated ~4.9 kW. hobart.ca+15WebstaurantStore+15WebstaurantStore+15
