Details
Overview

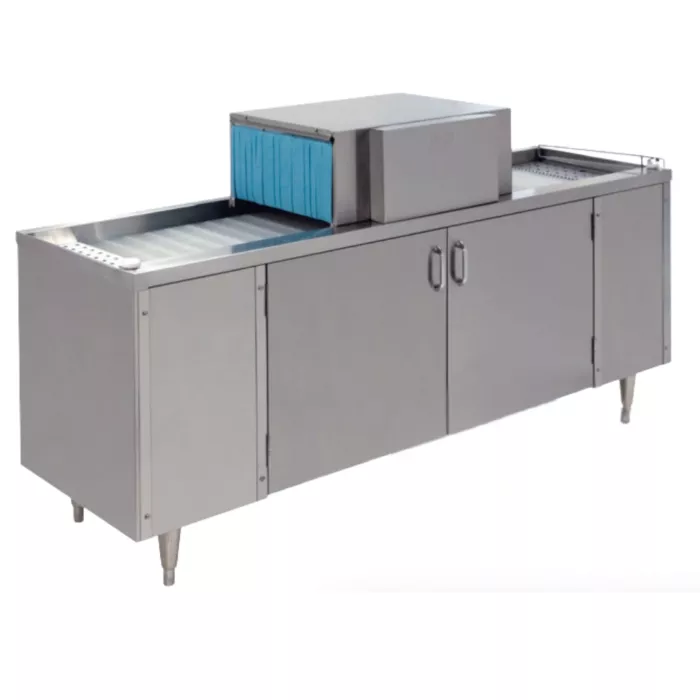

The Moyer Diebel SW600R is a premium 72‑inch pass‑through glasswasher designed for high-volume commercial use. Engineered for right-to-left operation, it delivers fast and reliable sanitation—cleaning up to 2,000 2½″ glasses per hour. NSF, UL, and CSA certifications ensure rigorous health and safety compliance.
Specifications
-

Capacity: Approximately 2,000 glasses per hour (2½″ diameter)
 -

Dimensions: 72″ W × 22″ D × 38.5″ H (uncrated)
 -

Inlet Water Temperatures: Hot 140–160 °F, Cold 75 °F
 -

Water Usage: Cold 2.8 GPM; Hot initial fill 3 gallons
 -

Electrical: 208/230 V, single-phase, 15 A, 3 kW heater; NEMA 6‑15P plug
 -

Vertical Glass Clearance: 10¼″
 -

Warranty: 1 year parts, 90 days labor

Features
-

Fully automatic operation with glass-activated shut‑off switch
 -

Durable polypropylene conveyor minimizes stemware chipping
 -

Three precision chemical pumps for detergent, sanitizer, rinse aid (compatible with iodine or chlorine)
 -

Upper and lower wash and rinse arms for thorough cleaning
 -

Cool final rinse for immediate use, no steam behind bar
 -

Two splash curtains contain spray and improve safety
 -

Built-in storage cabinet for chemicals
 -

Approved for right-to-left configuration; left-to-right also available upon request

Moyer Diebel (Champion Industries) has a long-standing reputation for industrial-strength warewashing equipment, offering robust customer support and thorough factory-certified installation services. The SW series is built for efficiency, reliability, and compliance with safety standards.
FAQ
Q1: What’s the operational capacity of the SW600R?
 A1: It processes around 2,000 glasses per hour (2½″ size)
Q2: What certifications does it have?
 A2: NSF, UL (US), and CSA (Canada) certified for safe commercial use
Q3: Can I configure direction?
 A3: Yes, the unit ships as right-to-left; left-to-right is available upon order.
Q4: How much water does it use?
 A4: 2.8 GPM cold; initial hot water fill is about 3 gallons
Q5: What’s the warranty on the unit?
 A5: 1 year parts, 90 days labor; must register within 10 days of installation
