Details
Overview

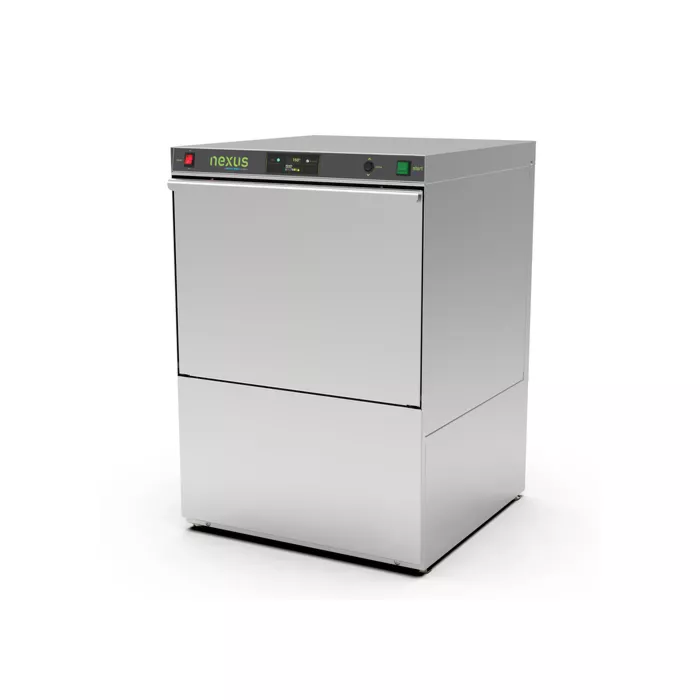

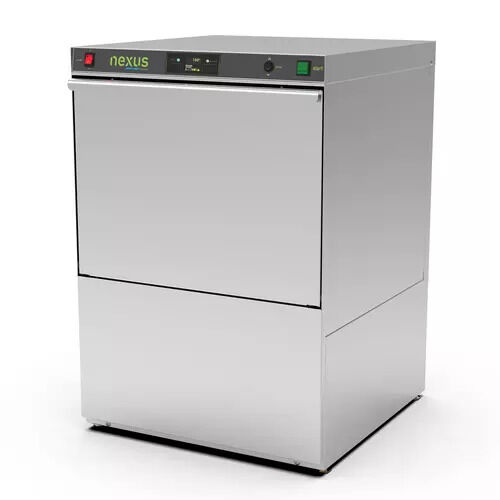

Meet the Moyer Diebel (NEXUS N900)—a high‑temperature undercounter dishwasher designed for unmatched cleanliness and efficiency. Operating at 24 racks per hour, it features a built‑in 5 kW booster heater and advanced Fill & Drain technology to ensure every rinse uses fresh, clean water—ideal for demanding commercial environments.
Specification
-
Model: Moyer Diebel (NEXUS N900)
-
Capacity: 24 racks/hour (excluding load/unload time)
-
Cycle Time: Approx. 150 seconds (e.g., 90 s wash + 15 s rinse + 45 s dwell)
-
Water Use: ~1.4 US gal (5.3 L) per rack
-
Temperature: Wash ≥ 150 °F (66 °C); Rinse ≥ 180 °F (82 °C), monitored by Nexus Safeguard
-
Heating: 2 kW tank heat; 5 kW booster heater
-
Power: 208–230 V, single‑phase, 22–24 A; requires 30‑amp breaker
-
Dimensions (W×D×H): ~24″ × 25″ × 33.5″ (609 × 635 × 851 mm)
-
Certifications: NSF, ETL/cETLus
-
Warranty: 1 year parts and labour
Features
-
Fill & Drain Technology ensures fresh water for each rinse and maintains pressure consistency during wash cycles
-
Intuitive LCD Control Display for easy monitoring of cycle status and temperatures
-
Pumped Wash System that maintains even, pressurized water distribution for superior cleaning performance
-
Double‑Skin Counterbalanced Door—robust, heat‑retaining design built for heavy use
-
AutoClean at Shutdown—automatically cleans the chamber after use
-
Nexus Safeguard—continuously monitors final rinse temperature to ensure NSF-compliant sanitization
-
Visual Diagnostics—provides real-time service guidance to reduce downtime
-
Includes one peg rack for versatile loading
Manufacturer Information
Proudly designed and built in Canada, the NEXUS N900 is a leader in commercial warewashing—combining energy efficiency, robust construction, and sanitary precision.
FAQ
1. How does Fill & Drain work and why is it important?
It automatically drains used water after each wash and fills fresh water before rinse ensuring the cleanest water is used every cycle, optimizing hygiene.
2. Does it meet sanitization standards?
Yes—the Nexus Safeguard guarantees the final rinse reaches at least 180 °F (82 °C), meeting NSF requirements.
3. What kind of power and installation setup is needed?
Requires a hard-wired connection: 208–230 V single-phase, 22–24 A, on a 30‑amp breaker.
4. Is it energy-efficient?
Yes—it features an efficient 5 kW booster and energy-saving design, including auto cleaning and insulated double-skin door.
5. What does the warranty cover?
Comes with a 1-year parts and labour warranty from the manufacturer.
