Details
Overview

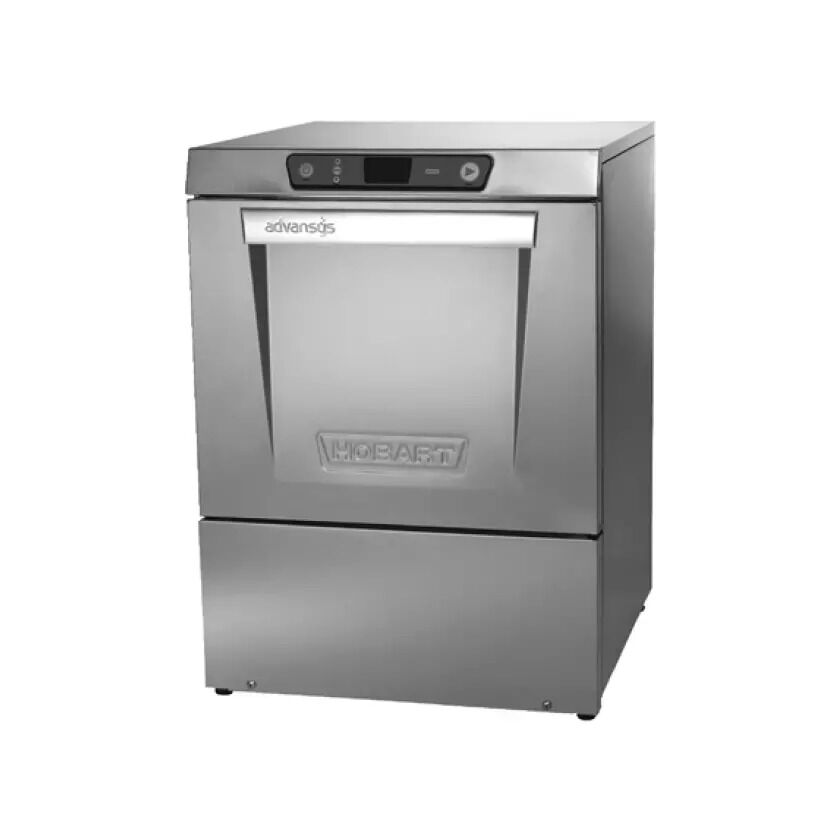

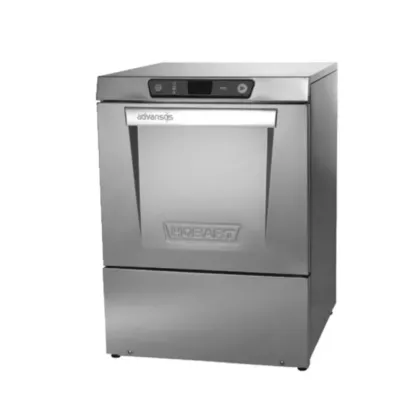

The Hobart Advansys LXeR‑2 is a high-temperature undercounter dishwasher featuring smart energy recovery for pre‑heating inlet water and eliminating excess steam. Designed to sanitize at 180 °F, it delivers up to 30 racks/hour on light cycle, providing superb reliability and efficiency in commercial kitchens .
Specification
-
Model: LXeR‑2 (Sense‑A‑Temp booster heater, 4.9 kW, delivers 70 °F rise to final rinse at 180 °F)
-
Throughput: Up to 30 racks/hour on light cycle; 24 racks/hr on normal; 13/hr heavy pot & pan mode
-
Water usage: Approx. 0.62 U.S. gallons (~2.35 L) per rack
-
Voltage: Compatible with 120 V or 208–240 V, single-phase, 30.5 A; hardwired
-
Construction: Stainless steel tank, door, and panels; ventless design with steam elimination and drip condenser coil for energy recovery
-
Door opening: 17″ wide for easy loading and cleaning
-
Cycle times selectable: 120 s (light), 146 s (normal), and 275 s (heavy pot & pan)
Features
-
Energy Recovery system uses steam vapor to preheat incoming water, reducing energy costs by up to ~15% and eliminating dishroom steam
-
Sense-A-Temp Booster Heater ensures heated rinse reaches 180 °F for NSF-certified sanitizing
-
Multiple cycle options (light, normal, heavy), including NSF pot & pan heavy mode
-
Auto Delime Cycle with notification and delime pump; low chemical alerts; clogged wash-arm detection and service diagnostics
-
Digital display and controls, optional touchscreen class in LXnR series with Wi‑Fi and SmartConnect support
-
Ventless operation with condenser coil and drip pan eliminates external venting; improves operator comfort
-
Includes detergent, rinse-aid, and delime pumps with auto-prime for consistent dosing and maintenance ease
Manufacturer Information
Hobart, a globally trusted manufacturer of commercial warewashing equipment, is widely known for its Advansys line featuring advanced energy-saving technologies and NSF-certified sanitation capabilities. The LXeR‑2 model carries ENERGY STAR and UL/NSF approvals and is backed by Hobart’s standard 1‑year parts-and-labor warranty
FAQ:
What sanitizing temperature does it achieve?
The Sense‑A‑Temp booster heater raises rinse water to 180 °F (≈ 82 °C), meeting NSF high-temperature sanitizing standards
What is the rack throughput?
Up to 30 racks per hour on the light cycle; 24 racks/hr on normal; 13 racks/hr on heavy NSF pot & pan cycle
How much water is used per rack?
Approximately 0.62 gallons (2.35 L) per rack, making it highly water-efficient
How does the energy recovery system work?
It captures steam from each cycle and condenses it to preheat incoming water, saving ~15% energy and eliminating excess steam in the kitchen .
Does it have maintenance alerts?
Yes—it includes automated deliming cycle with notifications, low chemical warnings, clogged wash-arm alerts, and advanced service diagnostics
