Details
Overview

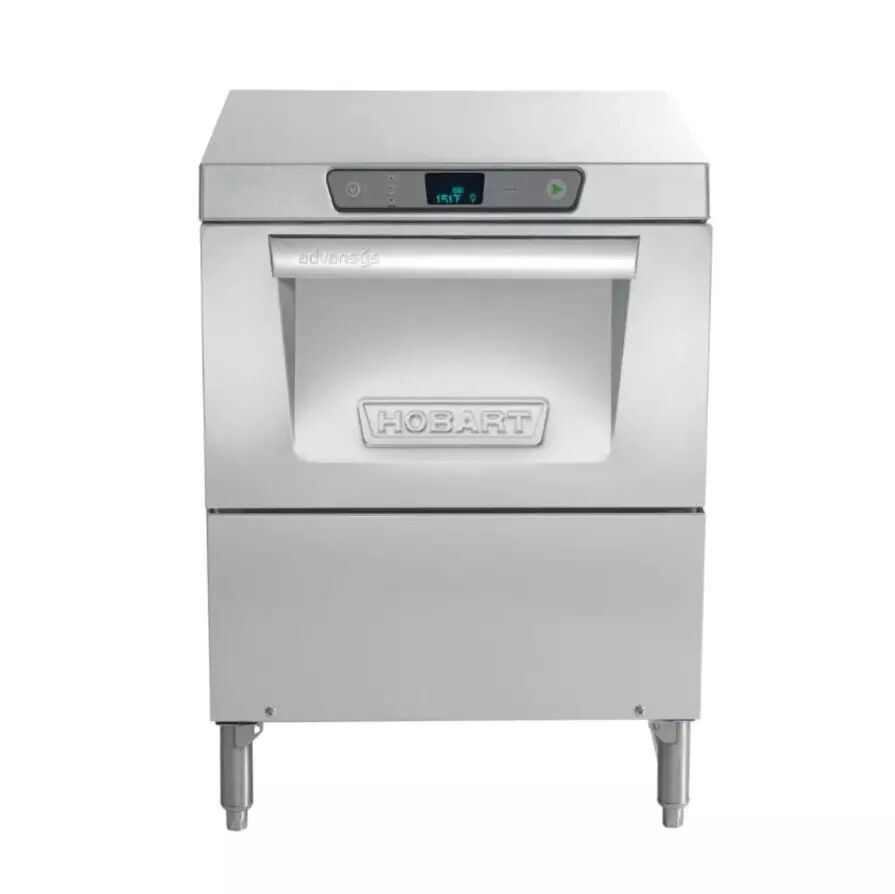

The Hobart LXGeR‑2 Advansys glasswasher delivers high‑temperature sanitation using only hot water—no chemicals required—while conserving energy and steam. Built with Energy Recovery technology, it recycles heat from vapor to preheat incoming water, eliminating steam and lowering operating costs. Its compact design (with 6″ legs) is ideal for bars, cafés, and small-scale environments that need efficient, high-performance warewashing.
Specifications
| Feature | Detail |
|---|---|
| Racks Per Hour | Up to 30 racks (light cycle), ~24 racks (normal) |
| Water Usage | 0.62 gal per rack (~2.35 L) |
| Cycle Time | ~120 s (light), ~146 s (normal) |
| Booster Heater | Sense‑A‑Temp™ — raises rinse temp to ~180 °F (~82 °C) |
| Energy Recovery & Steam Elimination | Yes; recycles vapor heat, reduces steam output |
| Water Usage Efficiency | .62 gal per rack |
| Construction | Stainless steel cabinet, snap‑in wash/rinse arms, digital top-mounted controls |
| Diagnostics & Automation | Auto Delime cycle, service diagnostics, chemical priming, low-chemical alert |
| Door Opening | 12″ loading clearanceHobart |
| Dimensions (excl legs) | W 23.94″ × D 26.81″ × H 34.38″ |
| Electrical | 120/208‑240 V (3-wire), 60 Hz, single-phase, ~30.5 A |
| Certifications | ENERGY STAR®, NSF, ADA‑compliant (compact 34 3⁄8″ height) |
Features
-
Energy‑saving & Eco‑friendly: Recycles steam for water pre-heating, reducing energy and steam emissions.
-
Soft‑Start Protection: Minimizes glass chipping by gently ramping up wash cycles.
-
Automated Maintenance: Includes Auto Delime and clean cycles to reduce manual upkeep.
-
Advanced Diagnostics: Monitors performance, alerts for low chemical levels, clogged arms, and provides service diagnostics.
-
No Vent Hood Needed: Steam elimination makes external ventilation unnecessary.
Manufacturer Information
Hobart Warewashing Systems’ Advansys LXGeR series represents cutting-edge, high-efficiency undercounter glasswashing technology. Trusted in commercial foodservice for reliability, sanitation, and smarter energy usage.
FAQ
Q: How many racks can it clean per hour?
A: Up to 30 racks/hour on light cycle, about 24 racks/hour on normal.
Q: Does it need chemical sanitizers?
A: No—uses hot-water sanitation (≈180 °F) via Sense‑A‑Temp, meeting NSF standards.
Q: Is energy recovery included?
A: Yes—vapor heat is captured to preheat incoming water, increasing efficiency.
Q: Does it generate steam?
A: Minimal—steam elimination keeps the washroom clearer and safer
Q: What are the electrical specs?
A: Compatible with 120 V or 208–240 V (3-wire), 60 Hz, single-phase setup; ~30.5 A draw
