Details
Overview

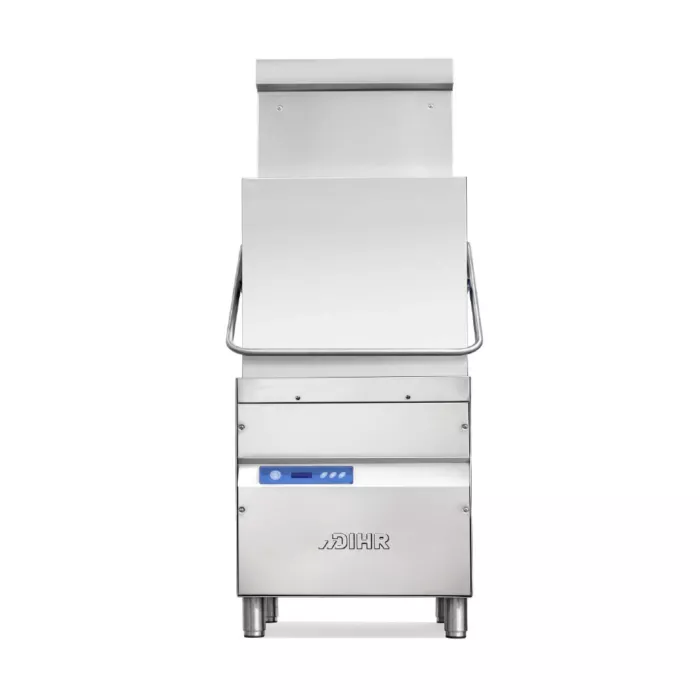

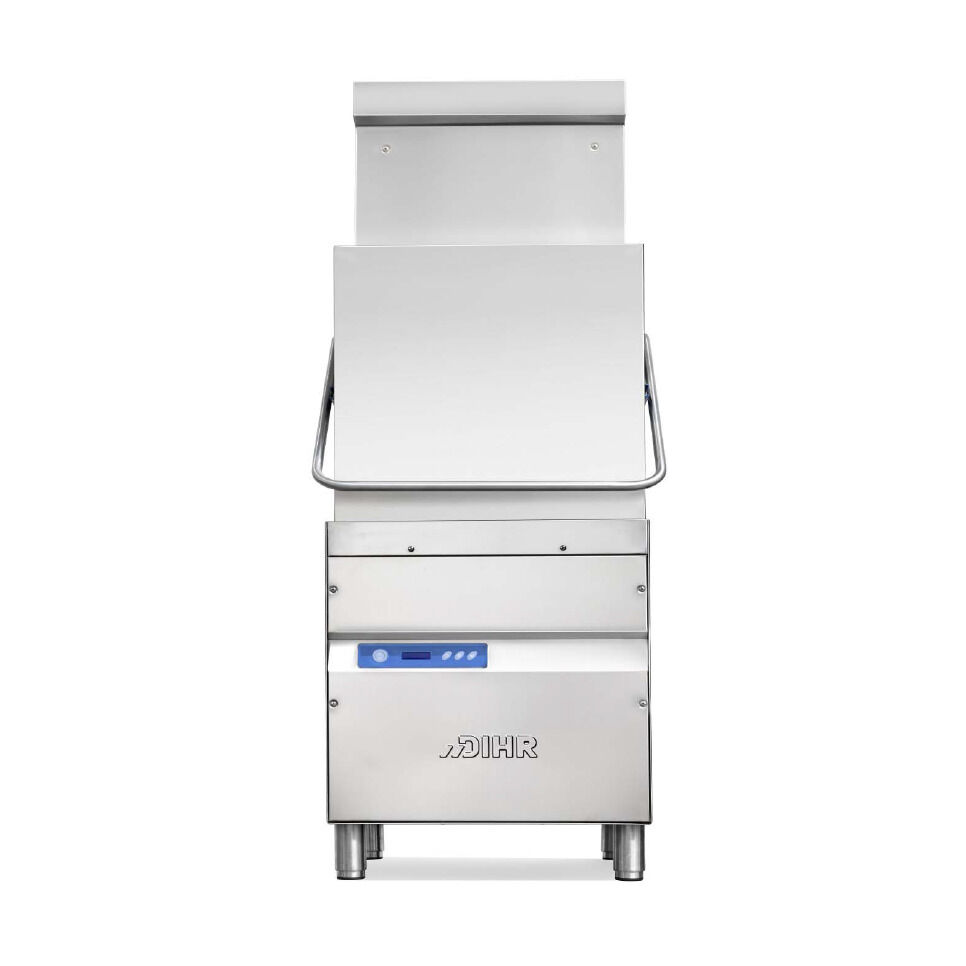

The DIHR HT 11 USA is a high‑temperature hood‑type upright dishwasher engineered for heavy‑duty, high throughput operations—delivering up to 30 racks per hour (20″ × 20″ rack). Built for reliability, it handles busy commercial kitchens with consistent sanitization and smart water-pressure control.
Specification
-
Model: HT 11 USA – approved for high-temperature operation with booster rise to ~185 °F (85 °C) rinse temperature
-
Capacity: 30 racks/hour (120‑sec cycle shown)
-
Water use: ~0.79 gallons (≈ 3.0 L) per cycle
-
Wash cycles: 120 sec & 180 sec, with partial‑drain for water and chemical savings
-
Dimensions: ~28⅜″W ×28 15⁄16″D ×56 7⁄8″H (hood closed), ~74″H open
-
Construction: Double-walled 304 stainless steel housing, 316 stainless‑steel boiler
-
Power: 10,920 W, 208–240 V, 1‑phase, 45.6 A (also available 3‑phase)
-
Certifications: ETL, CSA and NSF certified to highest sanitation standards
Features
-
Robust triple‑filter overflow & drain system protects the wash pump and extends durability
-
Anti‑drip roof design reduces spotting on glassware and flatware
-
Hood-operated auto start/stop simplifies operation—lift to start wash, close to end cycle
-
Interchangeable stainless steel wash & rinse arms for fast reassembly after maintenance
-
Built‑in rinse aid, detergent, and optional drain pumps for efficient dosing and hygiene
-
Three gauges display wash temp, rinse temp, and water pressure in real time
-
Warranty: 1 year parts and labour; 3 years coverage on major components
Manufacturer Information
DIHR (Italy) is a globally recognized leader in the commercial dishwashing industry, serving over 95 countries with highly automated production. Founded in 1985 and part of the Ali Group, DIHR combines innovative engineering with rigorous quality control to deliver reliable and hygienic equipment
FAQ:
What sanitizing temperature does it achieve?
Rinse temperature reaches approximately 185 °F (85 °C), ensuring NSF-compliant high-temperature sanitization .
Can it handle different water supply temperatures?
Yes—partial‑drain and thermostat controls adjust cycles in case of lower inlet temps; consistent throughput is maintained
How much water does it consume per wash?
Uses only about 0.79 gal (~3.0 L) per 20″ × 20″ rack—economical with partial‑drain water-saving cycles
Is it suitable for corner installation?
Yes—you can configure straight‑through or corner setups with minimal modification .
What is the warranty?
Standard: 1 year for parts and labor; 3‑year coverage on major components for added peace of mind.
