Overview

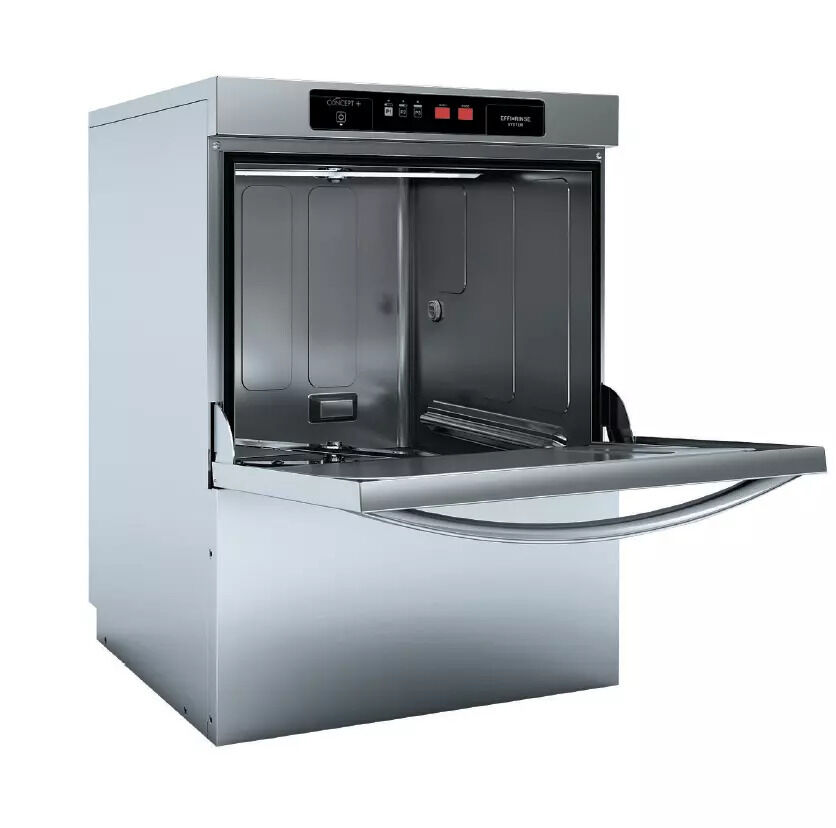

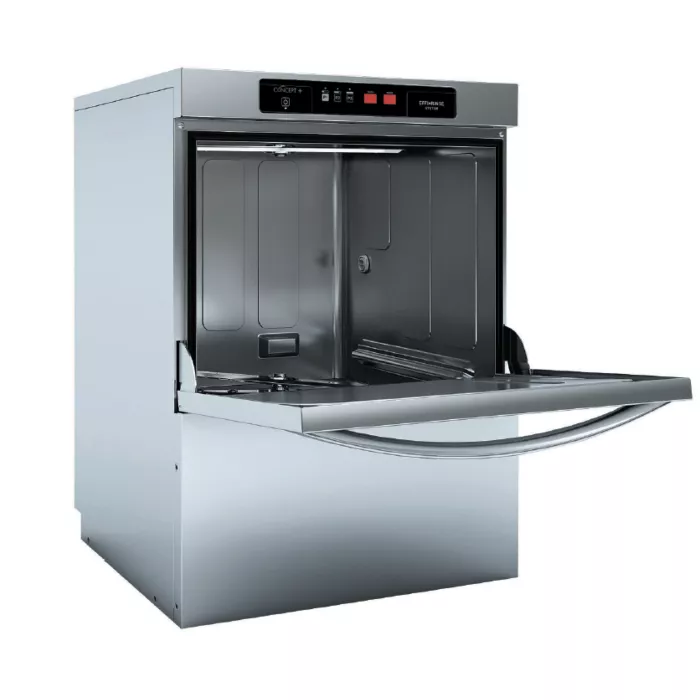

The Fagor COP‑504W (EVO Concept +) is a high‑production undercounter dishwasher with a built‑in 70 °F booster heater, offering up to 37 racks per hour throughput. It delivers consistent 180 °F final rinse sanitation using less than 0.63 gal (~2.4 L) per rack, making it ideal for busy commercial kitchens with space constraints .
Specification
-
Model: COP‑504W — high‑temp with built‑in 70 °F booster rise and “hot water assurance” ensuring rinse meets NSF standards
-
Throughput: Up to 37 racks/hour at full power; or 30 racks/hr at half power depending on cycle & inlet water
-
Water usage: ~0.63 gal (~2.4 L) per cycle; ~23–24 gal/hour overall
-
Wash cycles: Three pre‑programmed times: 90 s, 120 s, and 180 s total cycle
-
Construction: 304 stainless steel tank and double‑skin insulated body, stamped one‑piece wash tank, counterbalanced insulated door, soft‑start wash pump, IPX4 electronic controls
-
Size & Power: ~23 ⅝″ W × 23 ⅝″ D × 32 ¾″ H, door clearance ~15¼″; 208–240 V single‑phase (field convertible to 3‑phase); multi‑power settings (3.7 kW to 6.5 kW)
-
Certifications: ETL/ETL‑Sanitation, cETLus, CE, ENERGY STAR® rated
-
Warranty: One-year parts and labour
Features
-
Effi Wash & Effi Rinse system: Balanced hydraulic pressure ensures strong mechanical action and consistent 180 °F final rinse—even under low inlet pressure
-
Soft‑start wash pump: Reduces noise and protects delicate glassware and dishware at start-up
-
Hot Water Assurance: Timer only begins rinse once minimum temperature is reached for reliable sanitation
-
Insulated double‑skin body and door: Reduces noise and improves thermal efficiency (Effi Silent)
-
Built‑in detergent, rinse aid, and drain pumps, plus pressure gauge and adjustable legs for flexible installation
-
Digital controls IPX4 protected: Temperature display, cycle selection, ECO autofill; field‑convertible power & phase options
Manufacturer Information
Fagor Dishwashing is recognized for manufacturing commercial-grade warewashing equipment with high hygiene and energy efficiency standards. The COP-504W EVO Concept+ series meets NSF requirements, carries ENERGY STAR certification, and includes robust support backed by a one-year warranty .
FAQ
What rinse temperature does it reach?
The built-in booster reliably heats the final rinse to 180 °F (~82 °C) for NSF-approved sanitation .
How many racks per hour?
Up to 37 racks/hour at full power on 90‑second cycles (lower output at reduced power levels)
What is the water consumption per rack?
Approximately 0.63 gal (~2.4 L) per rack, aligned with Energy Star efficiency standards .
Is it noisy?
Thanks to insulated body and soft‑start pump, noise operates under 65 dBA for quieter operation
Does it include dosing pumps?
Yes—built-in detergent, rinse aid, and drain pumps come standard, simplifying use and service.
