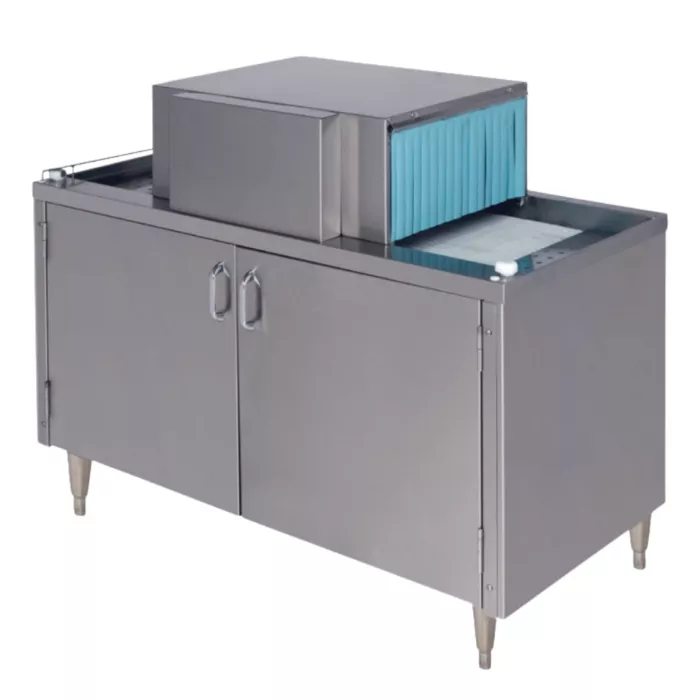

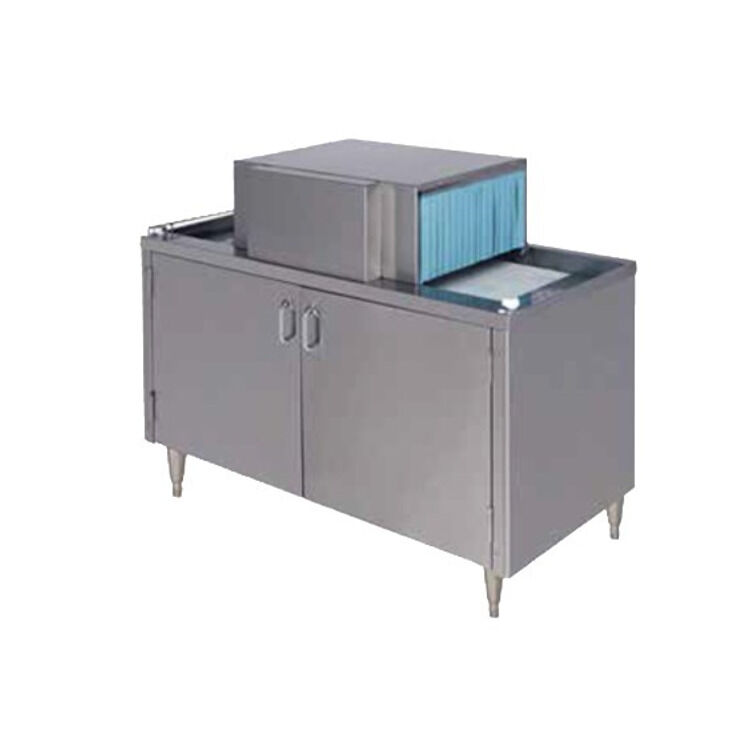

Moyer Diebel (SW400L) Pass‑Thru Conveyor Glasswasher (48″, Low‑Temp)
This professional‑grade glasswasher is engineered for high‑volume operations, delivering exceptional performance with a sleek, stainless‑steel finish. Its intuitive, automatic pass‑through design ensures sparkling clean, cool glasses within seconds—perfect for busy bars, pubs, or restaurants.
Specification
-
Model: Moyer Diebel (SW400L)
-
Type: Pass‑thru conveyor, low‑temperature chemical sanitizing
-
Dimensions: 38½″ H ×48″ W ×22″ D (uncrated)
-
Capacity: ~2,000 (2½″) glasses per hour
-
Water Usage:
-
Cold water: 2.8 US gpm (~10.6 L/min)
-
Hot water (initial fill): 3 US gallons (~11.35 L)
-
-
Temperature:
-
Hot inlet: 140–160 °F
-
Cold inlet: ~75 °F
-
-
Heating: 3 kW electric tank heater
-
Operation: Left‑to‑right (configurable; can be specified as right‑to‑left)
-
Construction: Stainless steel with polypropylene conveyor belt, minimizing stemware chipping; includes upper and lower wash/rinse arms, two splash curtains, cool final rinse, and three precision chemical pumps (detergent, sanitizer, rinse‑aid)
-
Certifications: NSF, UL, CSA; includes factory start‑up
-
Warranty: 1-year parts; 90-day labor; warranty registration required within 10 days of installation
Features
-
High‑capacity—cleans and sanitizes up to 2,000 glasses per hour.
-
Cool final rinse ensures glasses are ready for immediate use and helps reduce breakage.
-
Automatic, glass‑activated shut‑off for effortless operation.
-
Durable polypropylene conveyor protects delicate glassware.
-
Versatile installation (left‑to‑right or right‑to‑left) adapts to your space.
-
Efficient three‑pump injection system accurately meters chemicals, reducing waste and operating costs.
-
Splash curtains, upper/lower wash arms, and stainless design keep the environment clean and professional.
Manufacturer Information
Moyer Diebel is a trusted leader in commercial warewashing solutions, offering rugged, reliable equipment backed by strong manufacturer support, including spec sheets, manuals, replacement parts, and service resources
FAQ
What is the glass clearance?
Approximately 10¼″ vertical clearance—ideal for most stemware and glass types
Is the direction of conveyor fixed?
No—it can be ordered for either left‑to‑right or right‑to‑left operation. Be sure to specify during ordering .
What is the water consumption?
Roughly 2.8 gallons of cold water per minute and 3 gallons of hot water for initial fill; subsequent usage remains efficient.
What kind of maintenance or cleaning is needed?
Daily cleaning is recommended to ensure sanitation; consult the Moyer Diebel SW400‑600 manual for detailed maintenance guidance .
What is the warranty procedure?
Machine and parts are warranted for 1 year; labor is covered for 90 days. Register within 10 days of installation to validate the warranty.
